Rich fundamental tones, long sustain, and wide dynamic range provide the power needed to stand out in large ensembles.

Specifications

Range

Tubes

Material

Finish

Diameter

Pitch

Dimensions (W x D x H)

Weight

Accessories

  YCH7118
Range C52-F69, 1 1/2 octaves
Tubes Material Brass
Finish Clear lacquer coating
Diameter 38.1mm
Pitch A=442Hz
Dimensions (W x D x H) 80 x 71 x 177cm
Weight 84kg

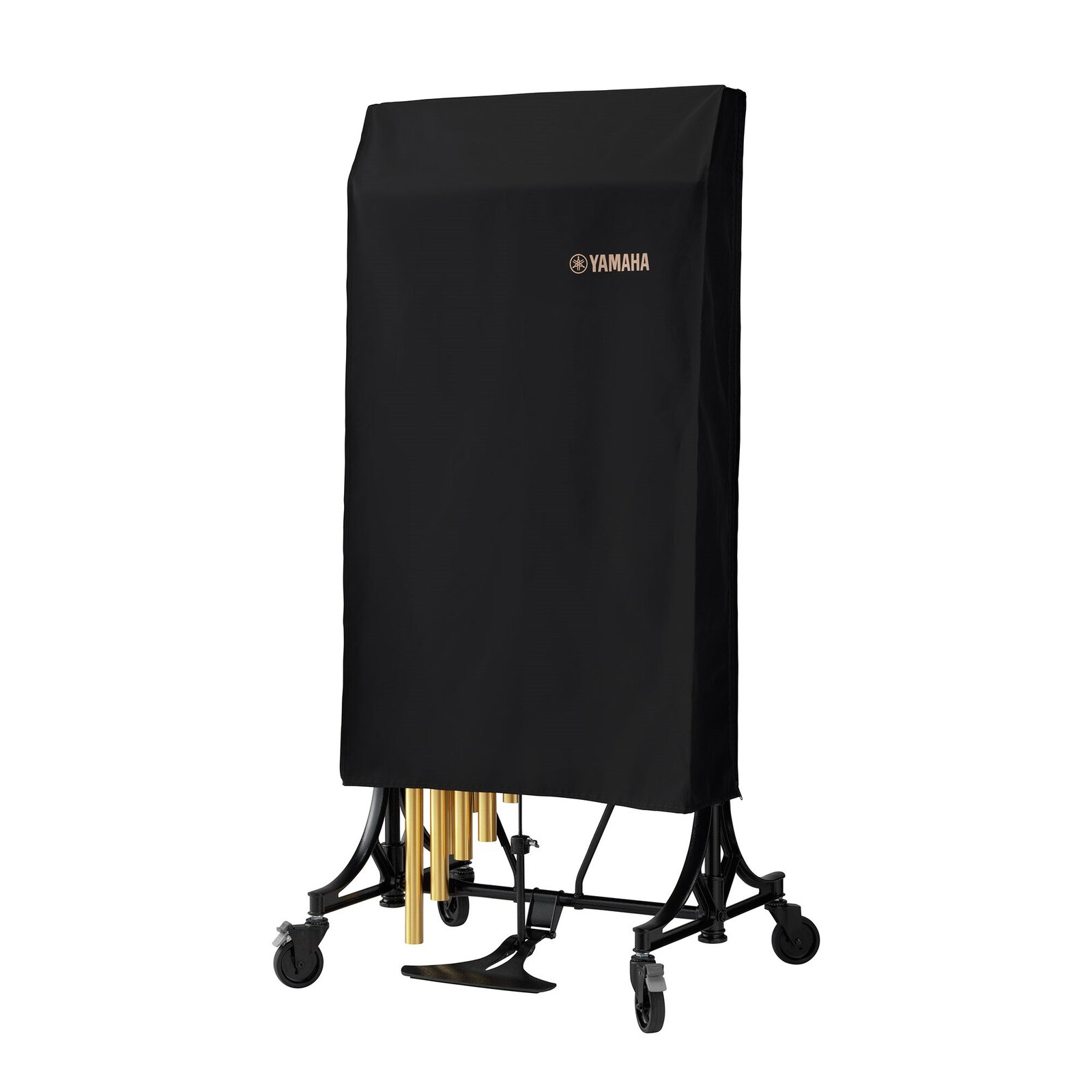

Accessories Dust cover (1pc), YCHM38P (2pcs)





Flexible Tube Arrangement

A full complement of damper holes is provided in the sharp/flat chime tube row, allowing any arrangement of chime tubes to be used. All available spaces can be used for a total of 21 tubes, if desired. Complete layout freedom is provided even when special-order chime tubes are used, since the position of the low C tube is not predetermined.

Note: The natural-note row of the YCH7118 does not provide sufficient height for longer chime tubes such as the YCHT7149A, YCHT7150A#, and YCHT7151B, so those tubes should be hung on the sharp/flat row or on a separate YCHS7106 stand.

If the short-length tubes such as YCHT7168E, 7169F, 7170F# or 7171G are hung on the sharp/flat row, the damper will not work properly since the lengths of those are not long enough to reach the damper unit. Please hang them on the natural row or use your hands to damp those extra tubes.


  • Feature image

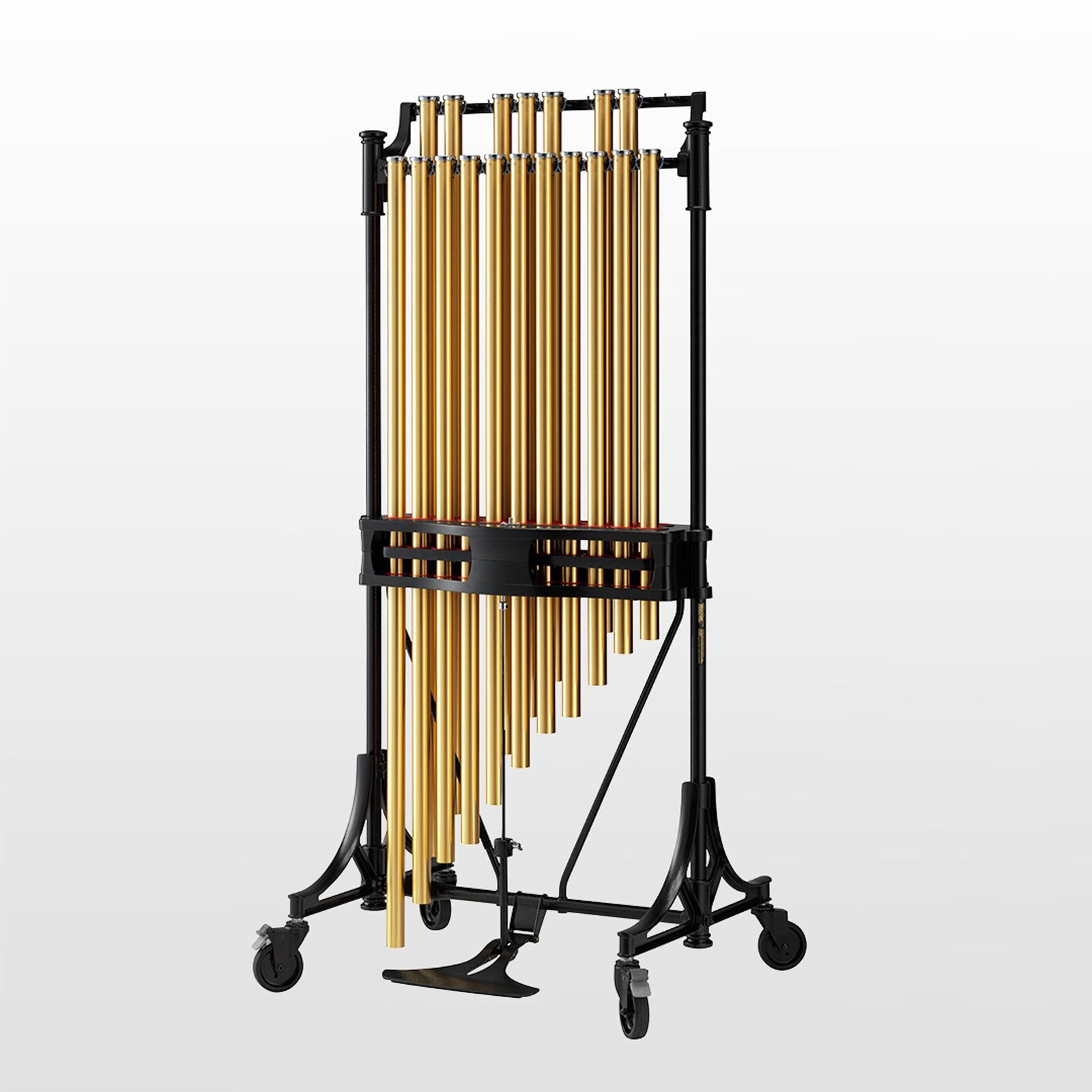

Standard arrangement


  • Feature image

An example with D54 as the lowest note (high F# and G are special order Chime tubes)

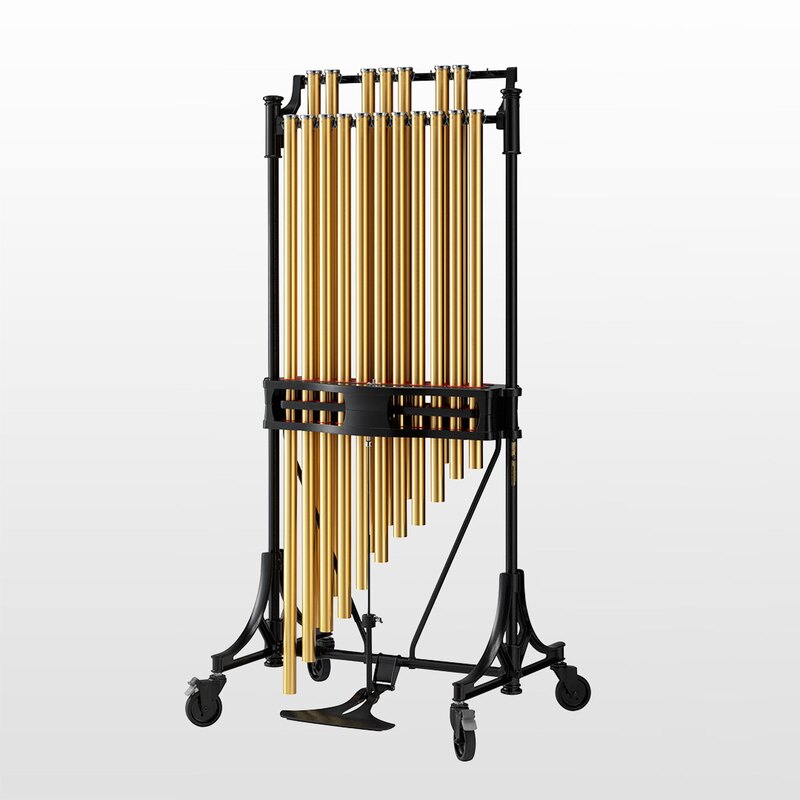

(YCH7118SET)

SKU YCH7118SET
Brand Yamaha
Shipping Weight 84.0000kg
